For 74CJ and DCP-1XX Series probe holders

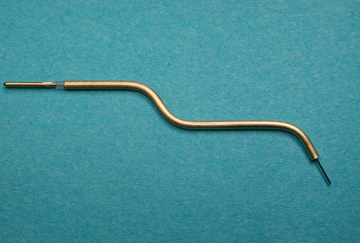

Replaceable coax probe for use with American Probe & Technologies 74CJ Series or the Cascade Microtech DCP-1XXR Series (73CT-CMIA/XX).

73CT Series For use with 74CJ and DCP-100 Replaceable coax probe for use with American Probe & Technologies 74CJ Series or the Cascade Microtech DCP-100R Series probe holders. Direct replacements for 107-157, 107-158, and 107-159 coaxial probes.

The 73CT-SMTA/XXX Series has a final bend of 45 degrees instead of the standard bend of 60 degrees. Specify the bend series on the drop down box when ordering.

Features
Assorted sizes and easily replaceable coaxial probe tip.
Fits in all Cascade DCP-1XXR probe bodies.
Radius ranging from .5 to 50* um
(*extra charge for radii over 20um)

Specifications
Dual low profile bends.
Very low leakage and capacitance.
Gold plated copper shield (0.034" OD).
Probe conductor is 8 mil (0.008") tungsten, radius etched to size.
Used in DC Parametric, LCR, Capacitance, and TLP Applications.

*The LIST PRICE and ORDER QUANTITIES are FOR EACH PROBE - NOT PER BOX
*Specify box quantity.
*Radius range of .5 to 20 um are priced as shown.
*Other sizes available (extra charge)
